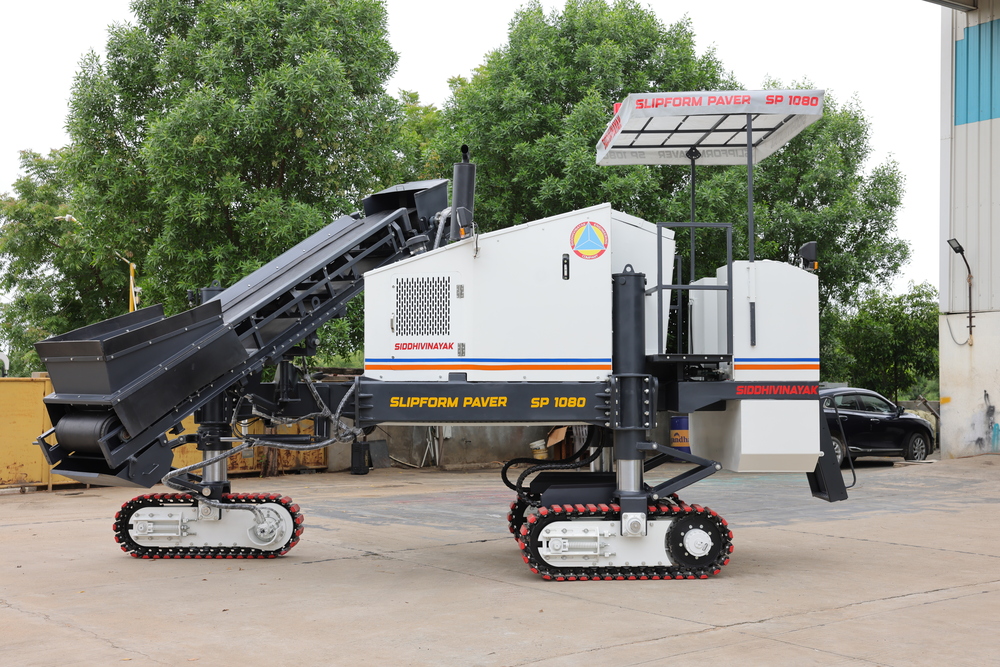

SP 1080 Offset Slipform Paver

Get a Price/Quote

MOQ : 1 Unit

SP 1080 Offset Slipform Paver Specification

Rated Power
110 kW

Lifting Height
Custom up to 450 mm

MAX TIP SIZE
Applicable to varied widths up to 4.5 m

Motor Power
110 kW (approx)

Surface
Painted/coated

Lifting Speed
Adjustable

Application
Pavement and road surface construction

Max Flow Rate
Variable, up to 250 l/min

Max Pressure
250 bar

Product Type
Offset Slipform Paver

General Use
Road and pavement construction

Material
High-grade Steel

Capacity
Up to 150 m3/hr

Weight (kg)
13500 kg (approx)

Computerized
Yes

Automatic
Yes

Cooling System
Water cooled

Method
Slipform paving

Voltage
415 V

Dimension (L*W*H)
7300 x 3200 x 3500 mm

Feature
High precision; operator-friendly control; durable construction

Color
Yellow/Blue

Hydraulic System
Dual Circuit

Steering System
Electronic with Joystick

Travel Speed
0-18 m/min

Vibration System
Electro-Hydraulic

Operator Cabin
Ergonomically designed with safety features

Mould Width
Up to 4.5 m

Lighting System
LED work lamps for night operation

Emission Standard
Compliant with latest norms

Engine Type
Diesel Engine

Working Width
1.5 m to 4.5 m

Drive Mode
Hydrostatic with 4-wheel drive

Sensor System
Grade and Slope control with advanced sensors

Tire Type
Heavy-duty off-road

Chassis
Heavy-duty welded steel structure

Fuel Tank Capacity
300 Liters

SP 1080 Offset Slipform Paver Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1-2 Week

About SP 1080 Offset Slipform Paver

The SP 1080 represents the pinnacle of Siddhivinayak Engineerings commitment to high-productivity road construction. Engineered for precision and versatility, this offset slipform paver is specifically designed to handle complex concrete profiles, including kerbs, channels, and safety barriers with unmatched efficiency.

By combining a powerful engine with advanced automated controls, the SP 1080 ensures that every linear meter is laid with consistent density and perfect alignment, significantly reducing manual labor and project timelines.

Performance Features

Precision Sensing: Equipped with advanced proportional sensors for grade, slope, and steering, ensuring the machine follows the stringline with millimeter accuracy.
Modular Mould Design: The offset design allows for quick changes between different concrete profiles, making it a versatile asset for diverse infrastructure projects.
Superior Compaction: Integrated hydraulic vibrators eliminate air pockets and ensure a smooth, high-density finish that meets international road standards.
Operator Centricity: Features an ergonomic operator platform with a centralized control panel, providing 360-degree visibility of the hopper and the finished concrete.
Heavy-Duty Undercarriage: The robust crawler tracks provide excellent stability even on uneven subgrades, maintaining a steady pace without slipping.

Primary Applications

Highway Kerbs & Gutters
Central Verges & Median Barriers
Irrigation Channels & V-Drains

Technical Specifications

SP 1080
Range of Applications	Offset paving
Concrete feeding system
Belt conveyor	Length: 4900 mm; belt width :500 mm
Concrete paving mould
Arrangement	Right
Lateral adjustment of mould	300 mm
Max. mould height	1300 mm
Max. mould width	1600 mm
Vibration
Standard Connectors for hydraulic vibration	6
Optional Connectors for hydraulic vibration	3
Engine
Engine manufacturer	Perkins
Type	1100 Series
Cooling	Water
Number of Cylinders	4
Rated power at 2200 rpm	74.5 kW/ 100 HP
Cubic Capacity	4.4 Litres (269 CU.IN.)
Fuel Consumption, Full load	12 to 13 Litre / Hour
Exhaust emission standards	EU Stage 3a/US Tier 3
Electrical System
Voltage supply	12V
Filling Capacities
Fuel	220 L
Hydraulic oil	230 L
Water	220 L
Cleaning Equipments	Heavy Duty Water Pump
Driving Performance
Operating speed	0 to 5 m/min
Travel speed	0 to 20 m/min
Track units
Number of track units	3
Track unit arrangement	1 x Front / 2 x Rear
Dimensions (L x W x H)	1630 mm x 230 mm x 550 mm
Height Adjustment of Machine
Hydraulic height adjustment	800 mm
Mechanical height adjustment	NO
Transport Dimensions (L x W x H)
Basic machine without concrete feeding system	6000 mm x 2400 mm x 3400 mm
Basic machine with belt conveyor	6000 mm x 3200 mm x 3400 mm
Belt conveyor without chute	4300 mm x 900 mm x 600 mm
Machine Weight
Operating Weight	10300 kg
Belt conveyor	1150 kg

Spotlight on excellence: The SP SP 1080 Offset Slipform Paver is a top-rated, lavish machine designed for dazzling road and pavement construction projects. This powerful, diesel-engine slipform paver features reduced downtime through robust hydrostatic 4-wheel drive and a heavy-duty welded steel chassis. With a working width up to 4.5 meters and a computerized, microprocessor-based control system, operators gain both high precision and premium comfort via a safety-focused, ergonomically designed cabin. Advanced grade and slope sensors, electro-hydraulic vibration system, and brilliant LED lighting ensure consistent performance-day or night.

Competitive Advantages & Application Areas

The SP SP 1080 Offset Slipform Paver delivers top-ranking efficiency and accuracy with its computerized controls and dual-circuit hydraulic system. Lavish operator comfort and enhanced safety are achieved through its ergonomically crafted cabin. This machine is a stellar choice for national highways, urban roads, airport runways, and industrial pavements. Its dazzling performance is ideally suited for heavy-duty surfaces such as concrete and asphalt, ensuring impressive durability and a smoothly finished application every time.

Payment Terms, Sample Policy & Packaging Details

Supply proposals for the SP SP 1080 Offset Slipform Paver are subject to negotiation and acceptance of the proposal amount prior to delivery. Packaging is robust, ensuring safe transport to the project site, with all parts securely contained and protected. Delivery timelines depend on order volume and customization. For qualified buyers and large projects, sample demonstration may be arranged upon request, providing a glimpse into the machine's lavish capabilities before full investment.

FAQ's of SP SP 1080 Offset Slipform Paver:

Q: How does the SP SP 1080 Offset Slipform Paver enhance operational efficiency?

A: The machine utilizes a computerized, microprocessor-based control system and advanced grade and slope sensors, ensuring high-precision work and reduced manual intervention, ultimately streamlining your paving process.

Q: What surfaces and applications is this paver best suited for?

A: This top-ranking paver is ideal for heavy-duty concrete and asphalt surfaces in roadways, highways, airport runways, and urban pavement construction, consistently delivering a polished, durable finish.

Q: Where can the SP SP 1080 Offset Slipform Paver be supplied and operated?

A: Manufactured and supplied across India, this dazzling machine is primed for a variety of construction sites, from metropolitan roads to industrial pavements and infrastructure projects nationwide.

Q: What are the key benefits of its operator cabin design?

A: The ergonomically designed operator cabin offers enhanced comfort and safety, incorporating modern controls and clear visibility-enabling operators to focus on precision and productivity with reduced fatigue.

Q: What payment and delivery options are available for procurement?

A: Payment terms typically involve negotiation of the proposal amount prior to supply, with delivery and packaging tailored to your project's specific needs and timeline. Demonstrations may be arranged for qualifying orders.
