Slipform Paver Machine

Name: Slipform Paver Machine
Brand: SIDDHIVINAYAK ENGINEERING COMPANY
Price: 12400000.0 INR
Availability: InStock

Price 12400000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Slipform Paver Machine Specification

Motor Power
100 Horsepower (HP)

Product Type
Slipform Paver

General Use
Kerbing, Crash Barrier, Bridge Parapets, median barrier, Side walks, Drainage channels

Material
Steel

Weight (kg)
10300 Kilograms (kg)

Computerized
No

Control System
Manual

Cooling System
Hydraulic Oil Cooling

Method
Other

Color
White

Slipform Paver Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
6 Week

About Slipform Paver Machine

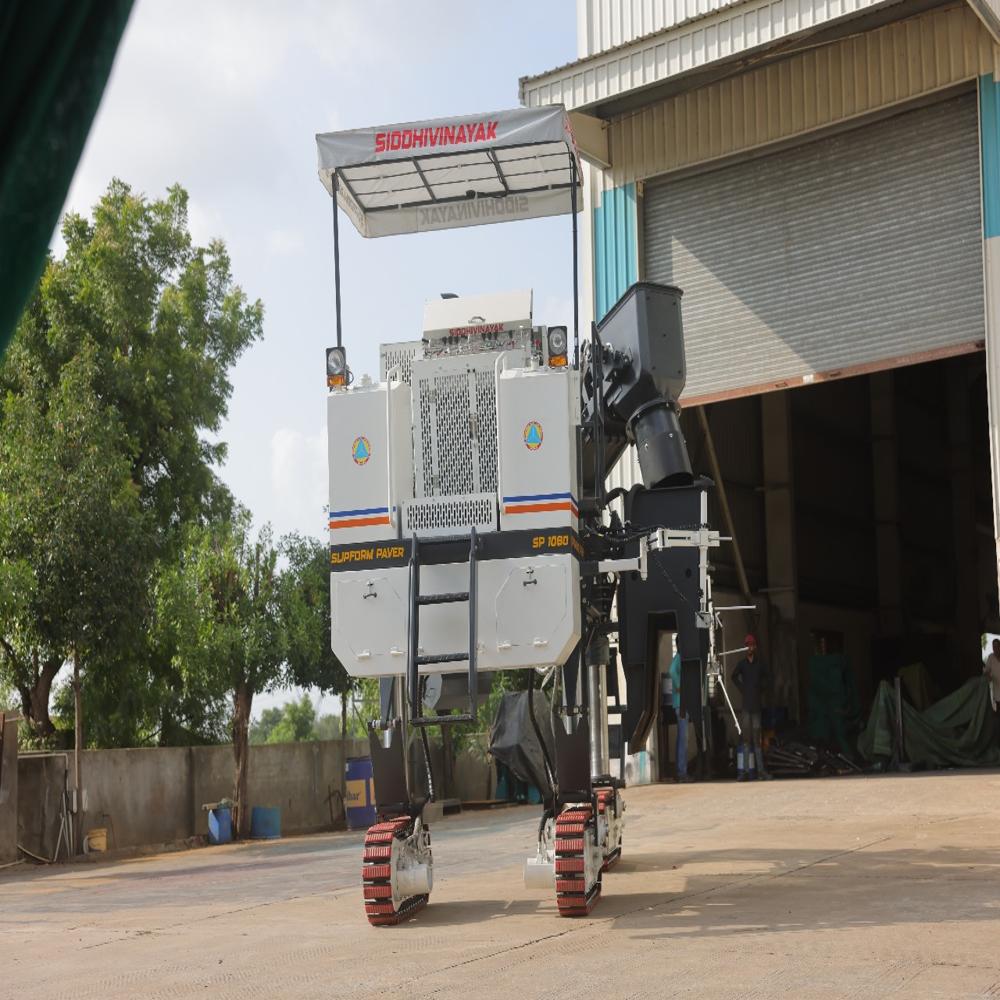

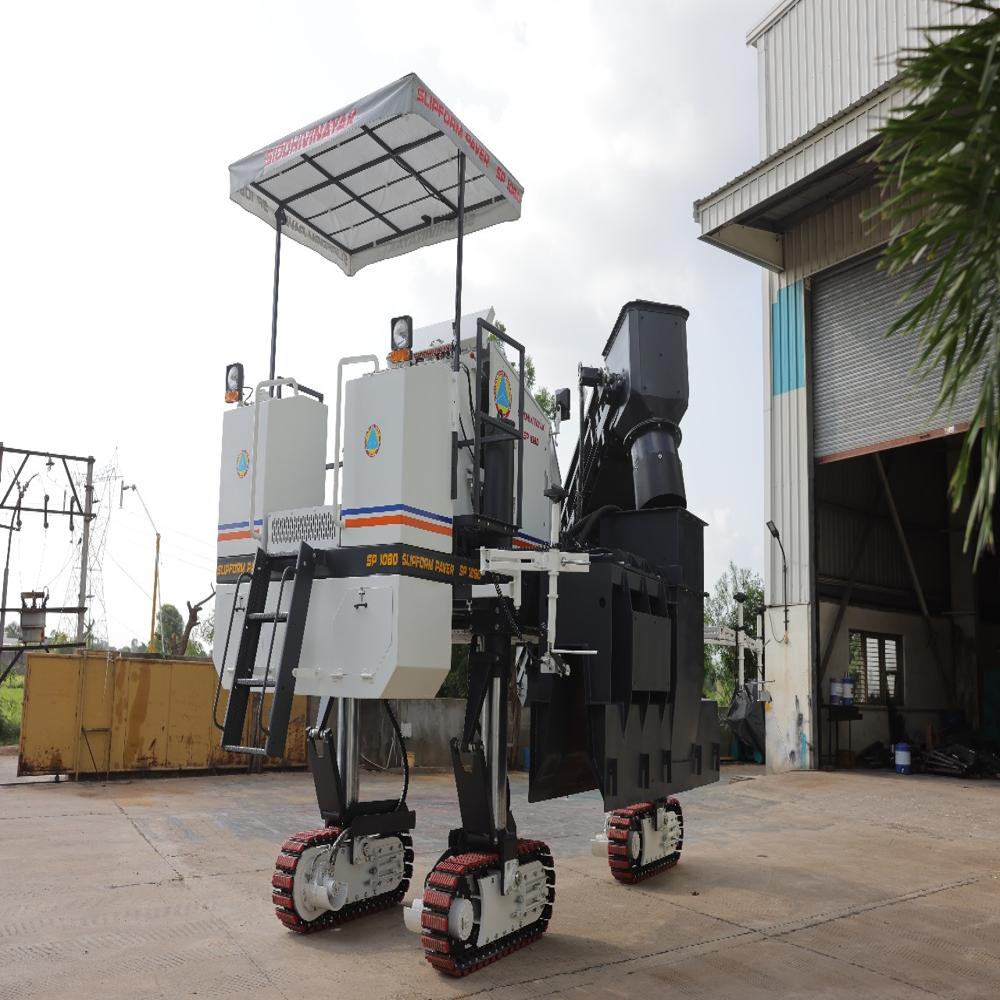

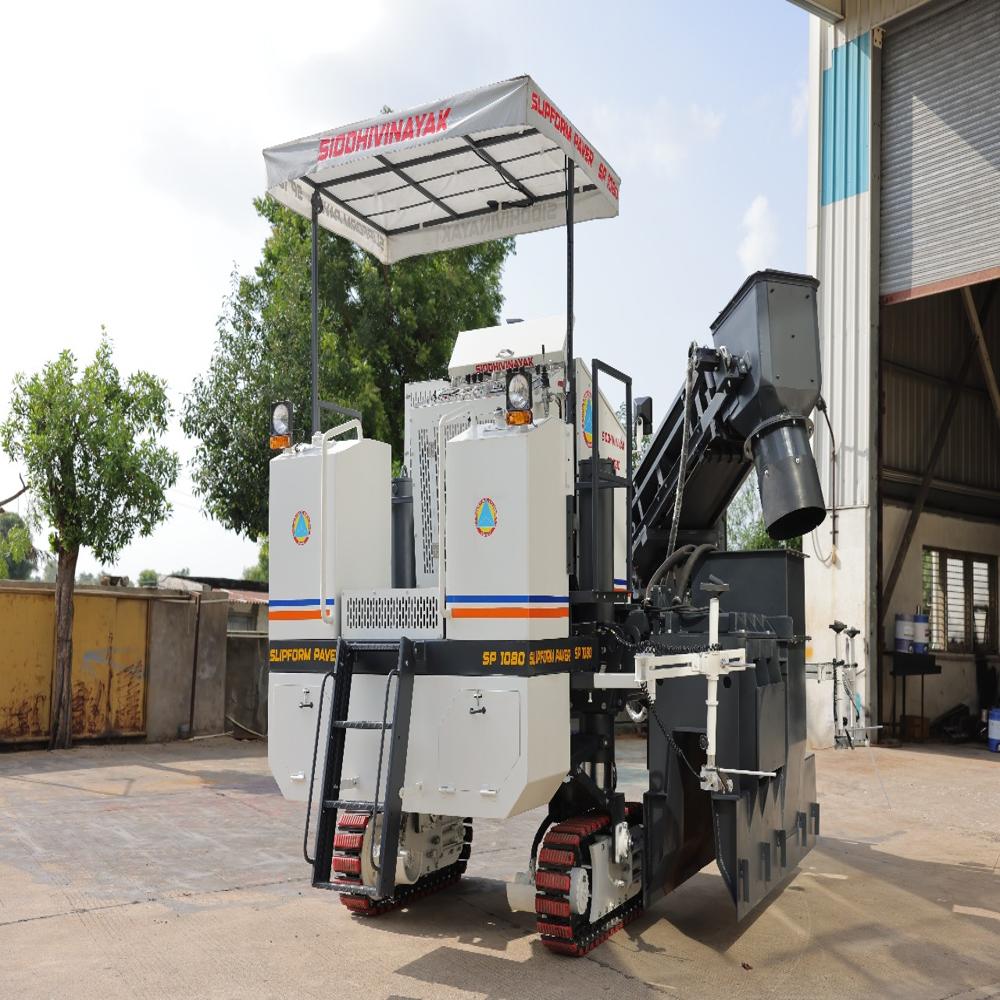

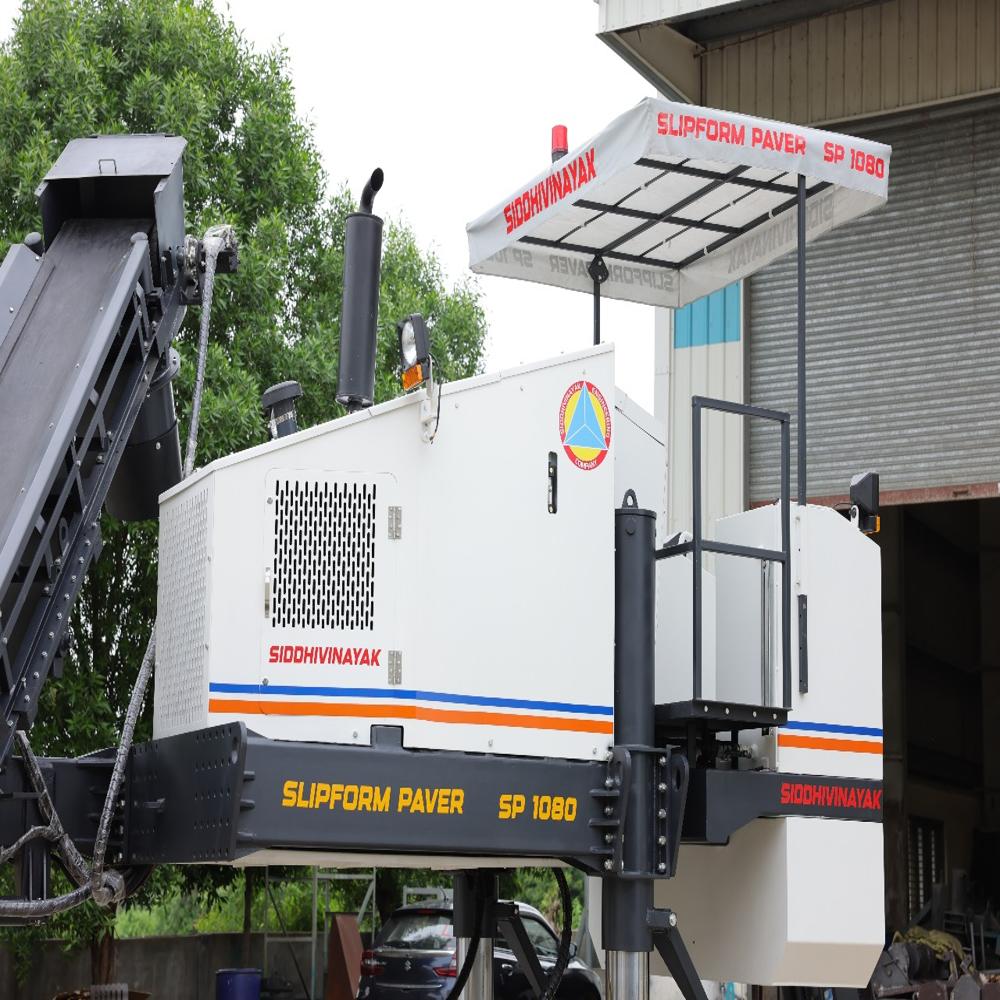

Introducing the Siddhivinayak SP-1080 Slip Form Paver Machine, your ultimate solution for high-precision and durable kerbing.

Powered by a robust Perkins water-cooled engine (74.5 KW), this machine is built for powerful and reliable performance. It features imported hydraulic pumps, motors, and advanced sensors for impeccable grade and slope control, ensuring every kerb meets the highest standards.

Equipped with five imported needle vibrators for superior concrete compaction and rubber-padded crawler tracks for a smooth, surface-friendly operation. The SP-1080 comes with one NHAI-specification mould, and its design allows for easy interchangeability to suit various kerb profiles.

Experience efficiency, accuracy, and quality in one powerful package.

Technical Details:

Range of Applications	Offset paving
Concrete Feeding system
Belt conveyor	Length: 4300 mm; belt width :500 mm
Concrete Paving Mould
Arrangement	Right
Lateral adjustment of mould	300 mm
Max. mould height	1300 mm
Max. mould width	1500 mm
Vibration
Connectors for hydraulic vibration	6
Engine
Engine manufacturer	Perkins
Type	1100 Series
Cooling	Water
Number of Cylinders	4
Rated power at 2200 rpm	74.5 kW/ 100 HP
Cubic Capacity	4.4 Litres (269 CU.IN.)
Fuel Consumption, Full load	12 to 13 Litre / Hour
Exhaust emission standards	EU Stage 3a/US Tier 3
Electrical System
Voltage supply	12V
Filling Capacities
Fuel	200 L
Hydraulic oil	220 L
Water	220 L
Cleaning Equipments	Heavy Duty Water Pump
Driving Performance
Operating speed	0 to 5 m/min
Travel speed	0 to 15 m/min
Track units
Number of track units	3
Track unit arrangement	1 x Front / 2 x Rear
Dimensions (L x W x H)	1630 mm x 230 mm x 550 mm
Height Adjustment of Machine
Hydraulic height adjustment	800 mm
Mechanical height adjustment	NO
Transport Dimensions (L x W x H)
Basic machine without concrete feeding system	6000 mm x 2300 mm x 3400 mm
Basic machine with belt conveyor	6000 mm x 4300 mm x 3400 mm
Belt conveyor without chute	4400 mm x 900 mm x 600 mm
Machine Weight
Operating Weight	10300 kg
Belt conveyor	1150 kg

Superior Performance for Infrastructure Projects

The Slipform Paver Machine stands out for its robust construction and powerful 100 HP engine, making it an ideal choice for demanding paving tasks. Whether it's constructing crash barriers, kerbs, or drainage channels, this machine delivers consistent quality while withstanding intensive use on Indian job sites.

Precision and Reliability with Manual Control

Equipped with a reliable manual control system, operators maintain hands-on command over every stage of the paving process. The hydraulic oil cooling system ensures long-lasting operation, minimizing downtime and optimizing project timelines.

FAQ's of Slipform Paver Machine:

Q: How is the Slipform Paver Machine operated without computerized controls?

A: The Slipform Paver Machine is operated using a manual control system, enabling skilled operators to manage functions such as steering, paving speed, and alignment directly. This provides greater flexibility and responsiveness during various paving tasks.

Q: What materials and structures can this paver handle efficiently?

A: This machine is specifically engineered to lay concrete for kerbing, crash barriers, bridge parapets, median barriers, sidewalks, and drainage channels with high precision and durability, thanks to its sturdy steel construction and effective paving mechanism.

Q: When should I choose a non-computerized, manual slipform paver over an automated model?

A: A manual, non-computerized slipform paver is ideal when you require direct operator control, more immediate adjustments, and straightforward maintenance. These benefits are especially valuable for projects demanding adaptability and consistent mechanical reliability.

Q: Where is this slipform paver typically used in India?

A: It is widely used on road construction sites, city infrastructure projects, and bridge developments across India-wherever precise concrete formation for kerbs, barriers, or drainage channels is essential.

Q: What is the process of paving with this machine?

A: The process begins by preparing the site and loading concrete into the hopper. Operators then guide the machine along the designated pathway, using manual controls to ensure the slipform mold shapes the materials accurately according to project requirements.

Q: What benefits does the hydraulic oil cooling system provide?

A: The hydraulic oil cooling system effectively dissipates excess heat generated during operation, ensuring smoother, trouble-free performance and reducing the risk of overheating during prolonged use.

Q: How does the steel construction and machine weight contribute to its performance?

A: The steel body and substantial 10,300 kg weight increase stability and reduce vibrations, resulting in superior paving accuracy and resilience against tough working conditions.
